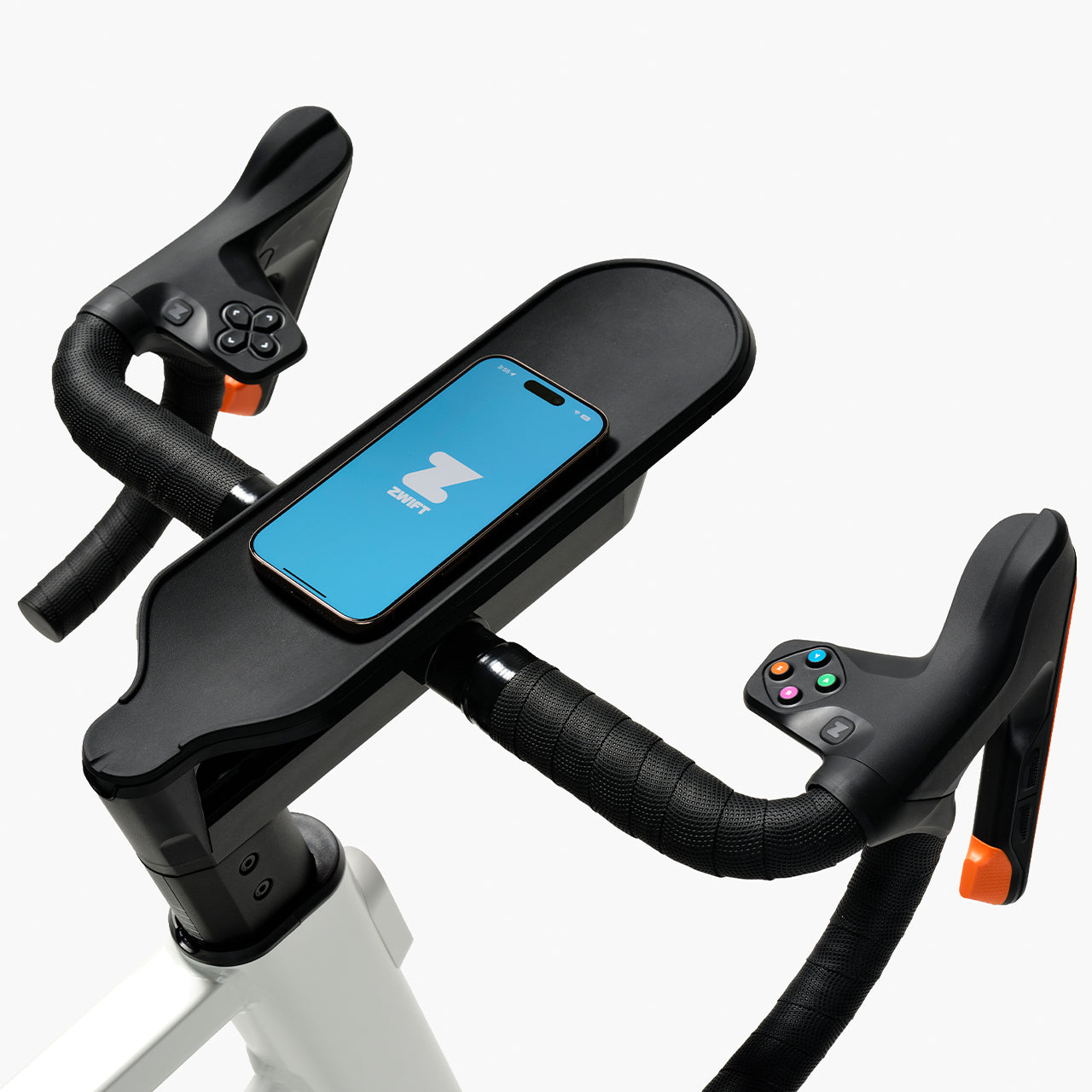

Zwift Ride Smart Frame Handlebars with Zwift Companion

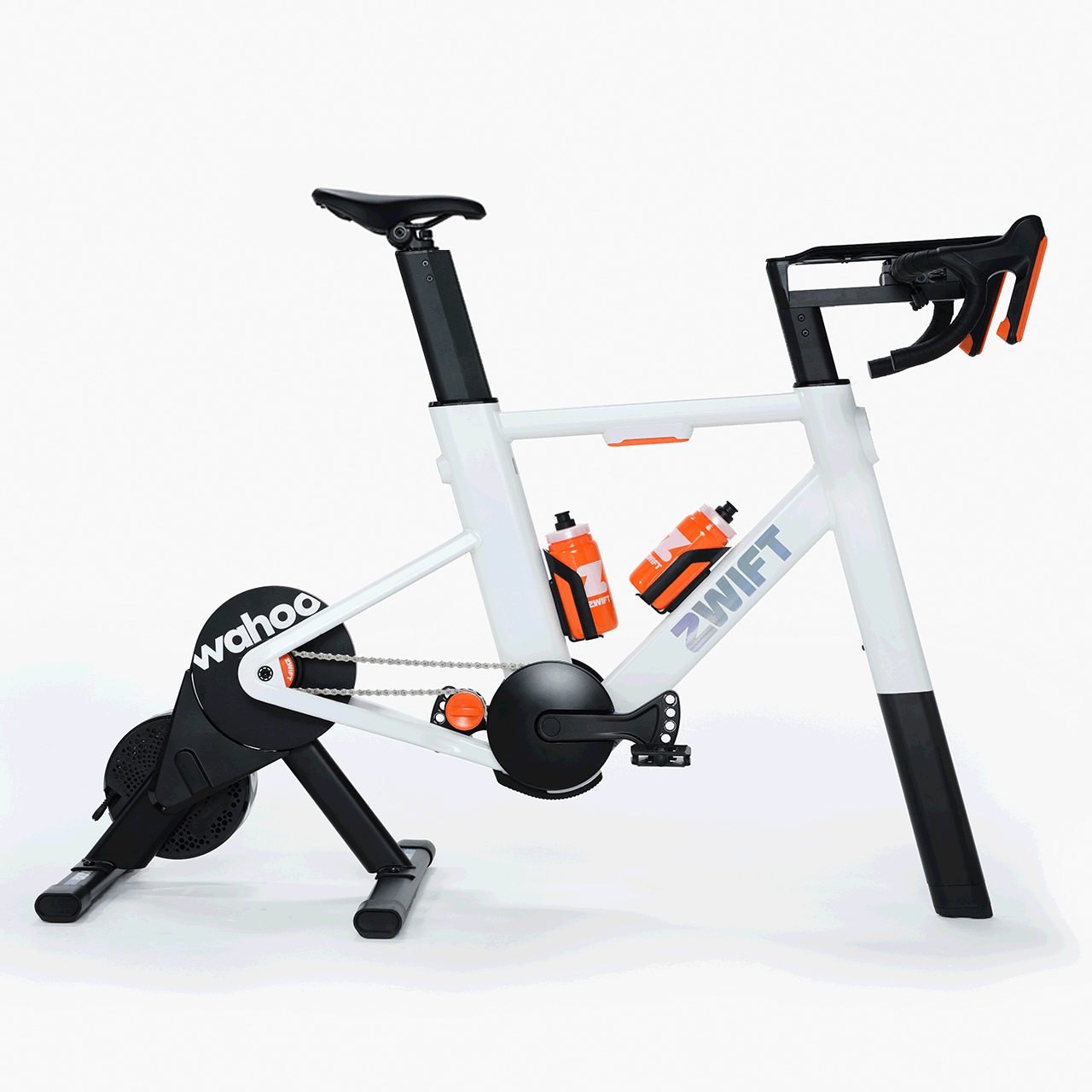

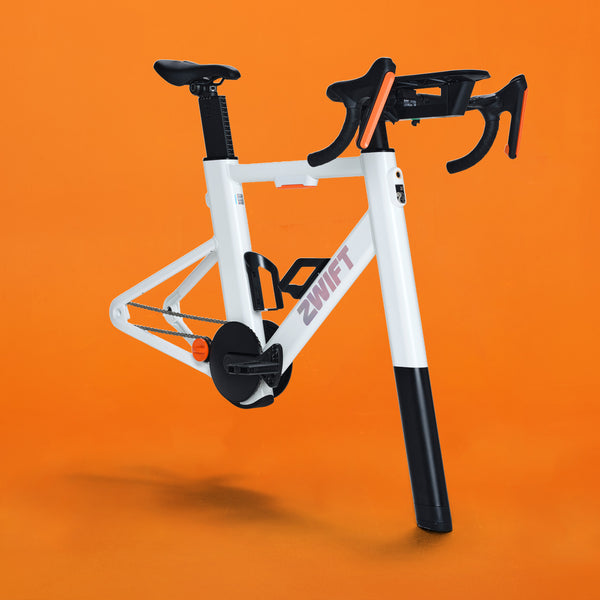

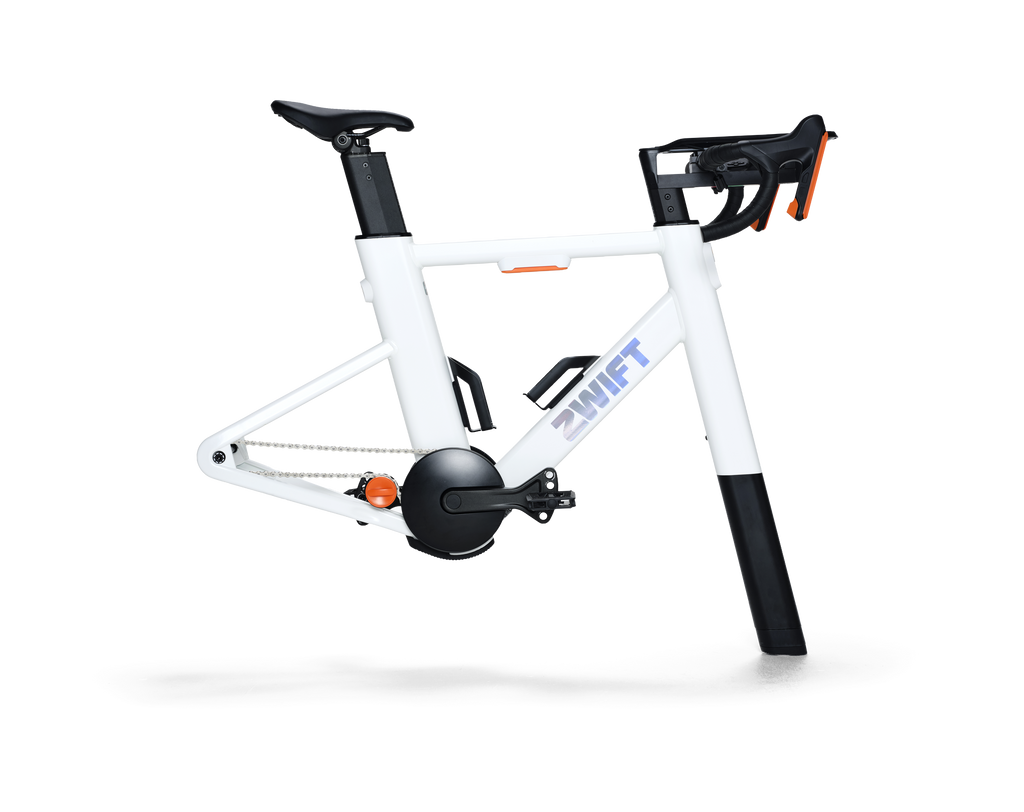

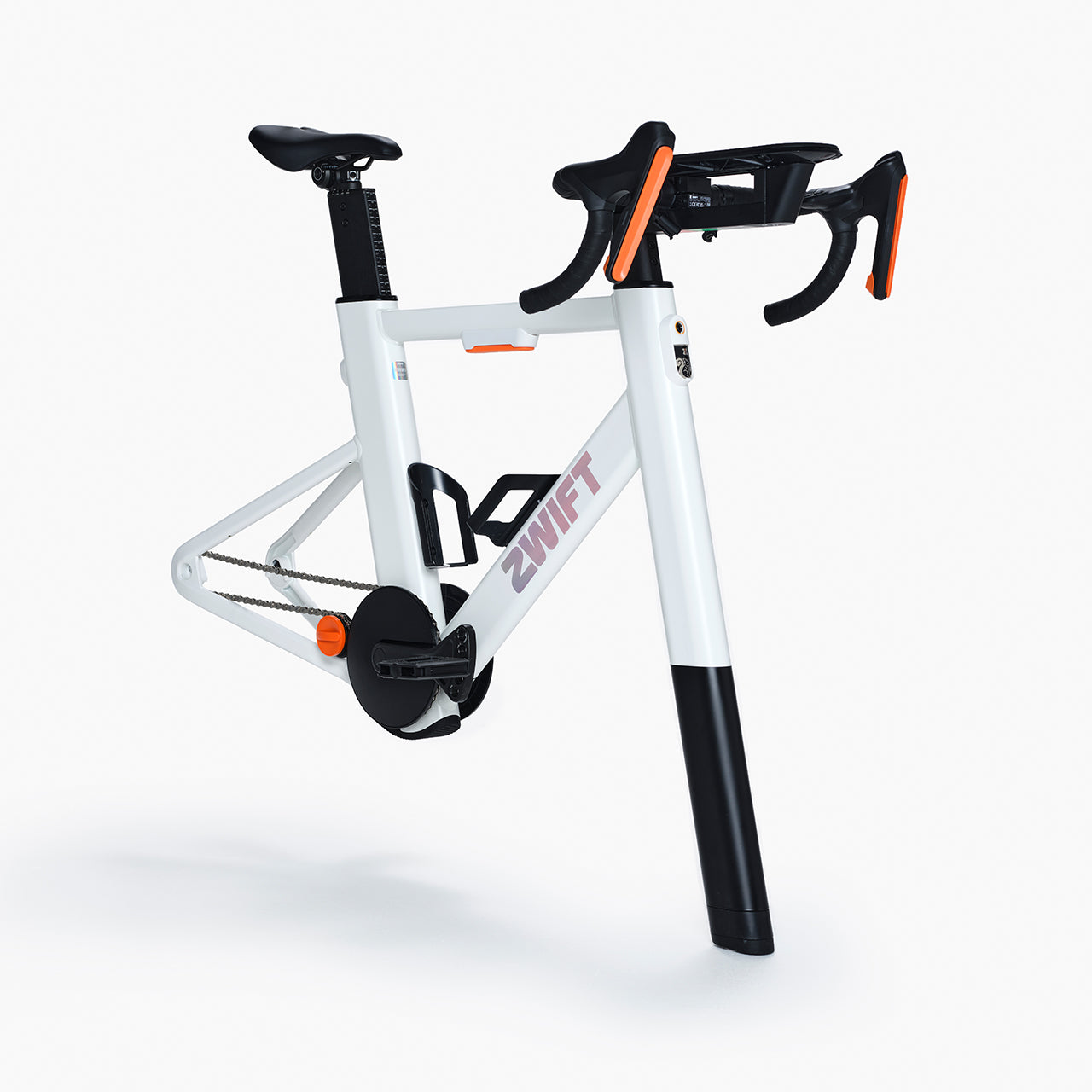

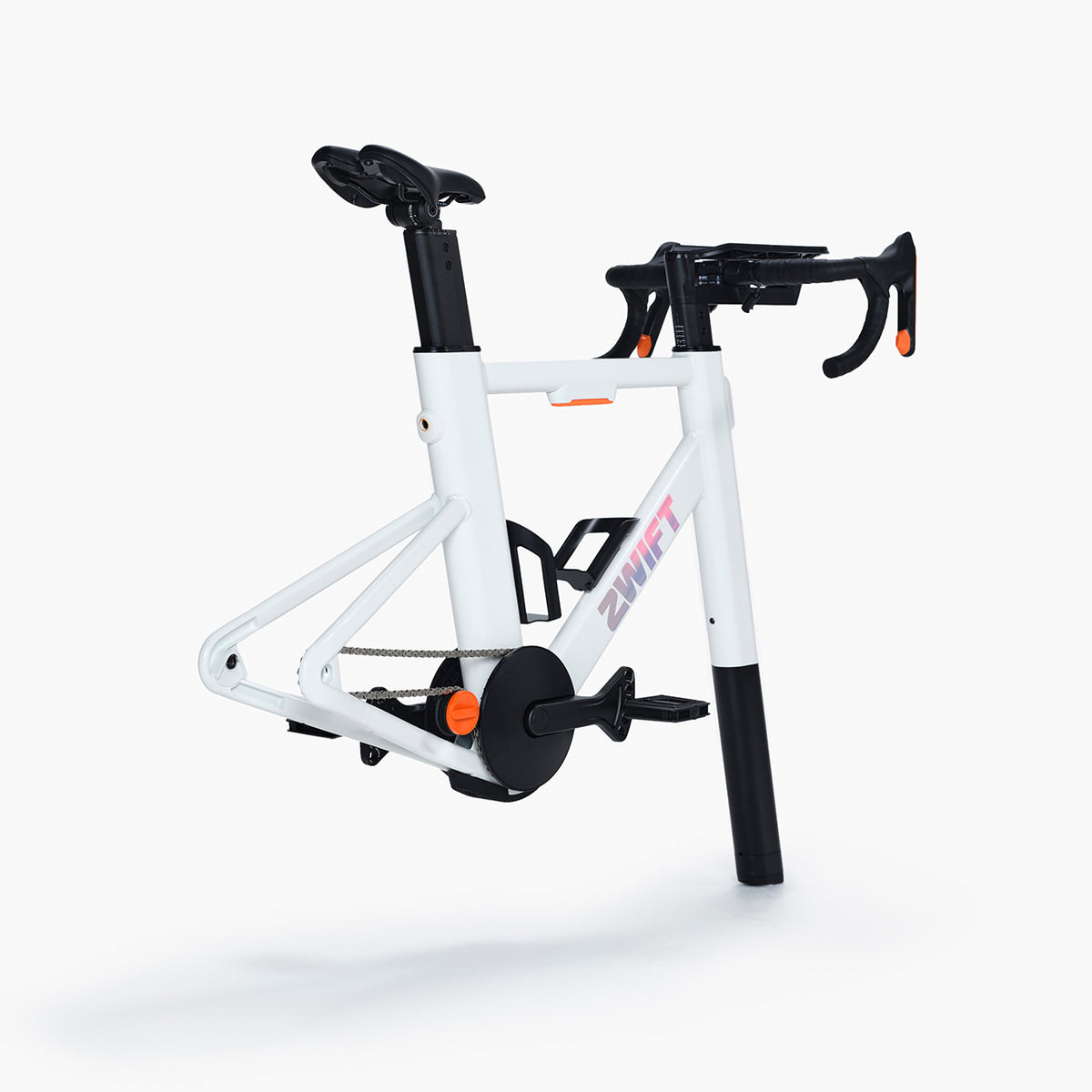

Zwift Ride Smart Frame

Name: Zwift Ride Smart Frame
Brand: Zwift
Price: 799.99 USD
Availability: InStock
Rating: 4.9 (30 reviews)

$799.99

Upgrade to Zwift Ride Smart Frame and transform your Zwift Ready smart trainer into an always-ready, all-in-one smart bike. Unlock the full potential of Zwift with built-in handlebar controllers and customizable virtual shifting. Zwift Ride Smart Frame is easily adjustable, making it perfect for everyone at home. Keep your outdoor bike ready for the outdoors and upgrade to an all-in-one indoor cycling solution that’s always ready to go.

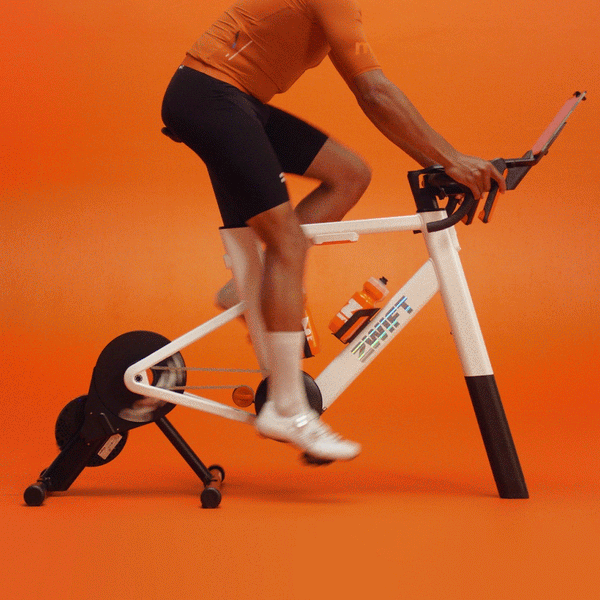

Click here to see if your smart trainer is compatible.

To install Zwift Cog, use your existing smart trainer’s freehub.
See our setup video for more information. Note: Additional tools required.

what's included

ZWIFT RIDE SMART FRAME

Frame with integrated controllers

Zwift Cog

Single Speed Sprocket
Freehub Not Included

Features

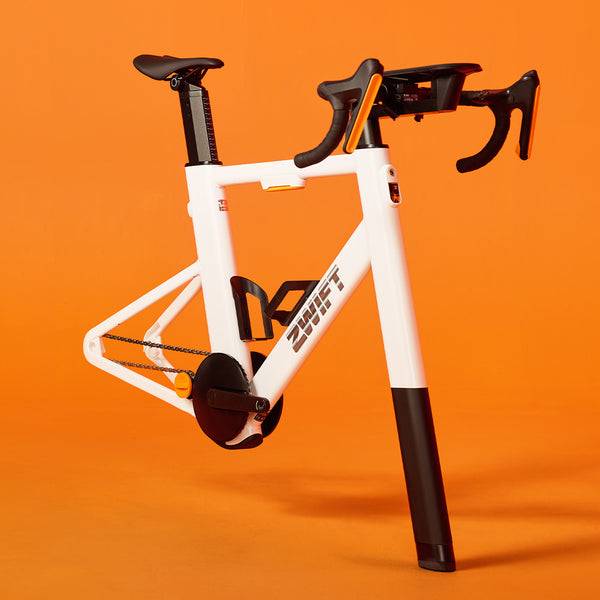

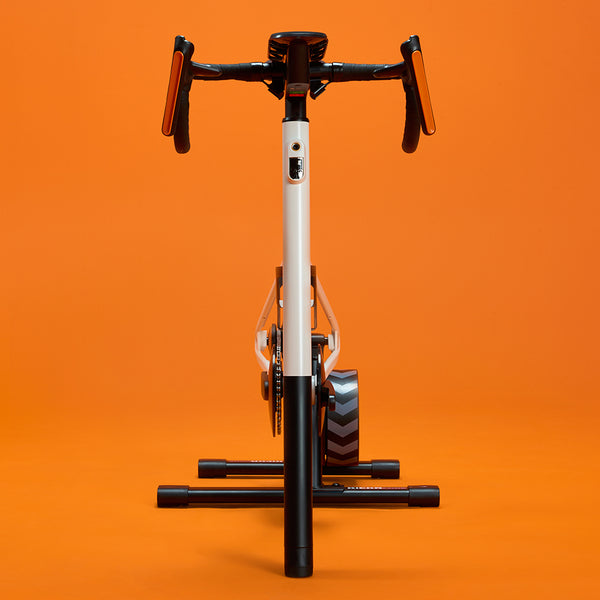

Quiet & Compact

Zwift Ride Smart Frame is powerful, yet keeps a low profile: it takes up less space than a traditional bike and trainer setup, and can be easily packed away and set back up again if needed.

Simple Setup

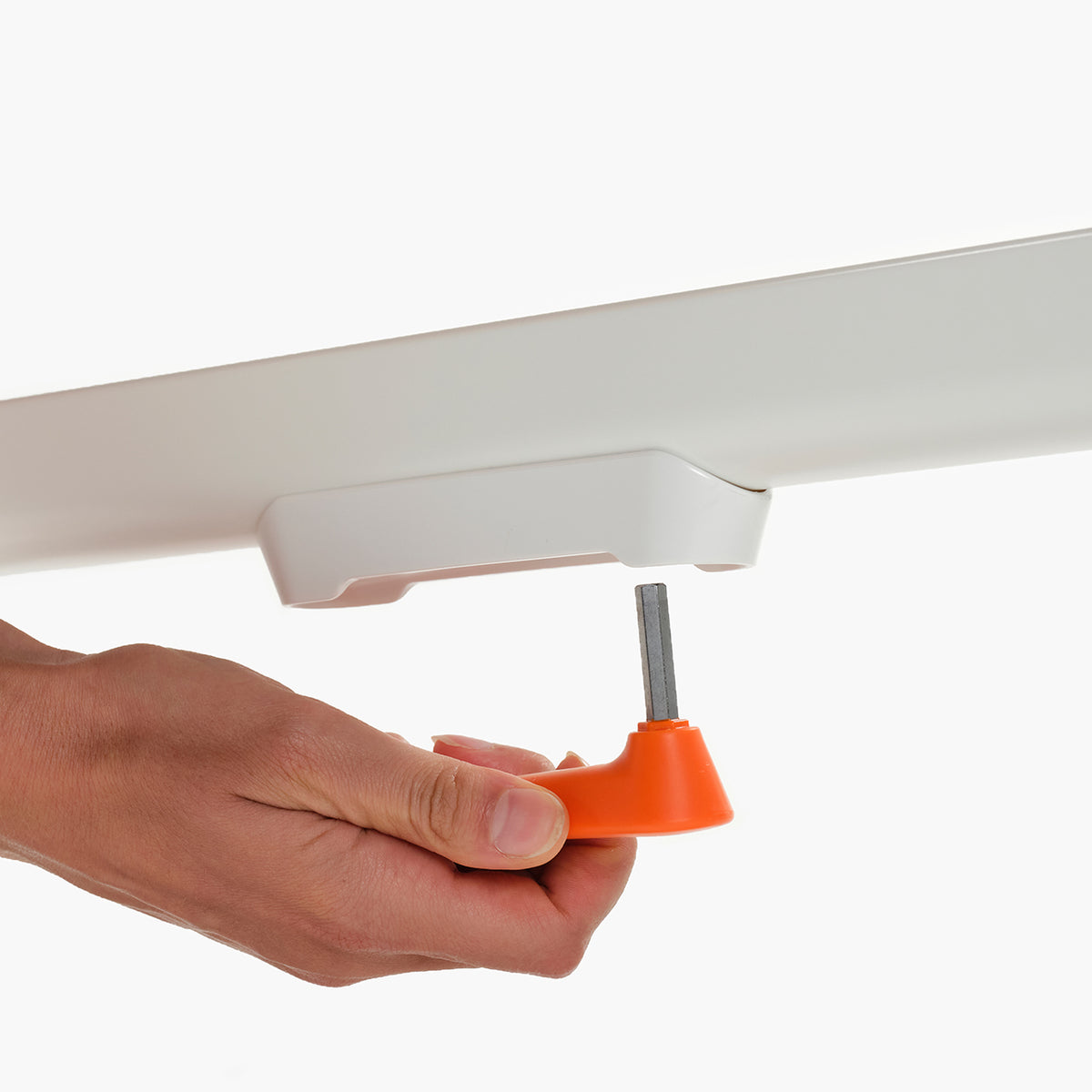

Set up the Zwift Ride Smart Frame easily on your own. All you need is the included Frame Key and a compatible smart trainer.

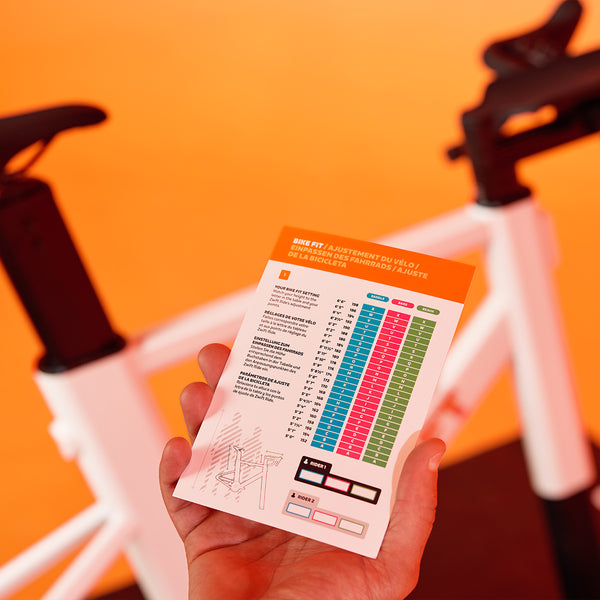

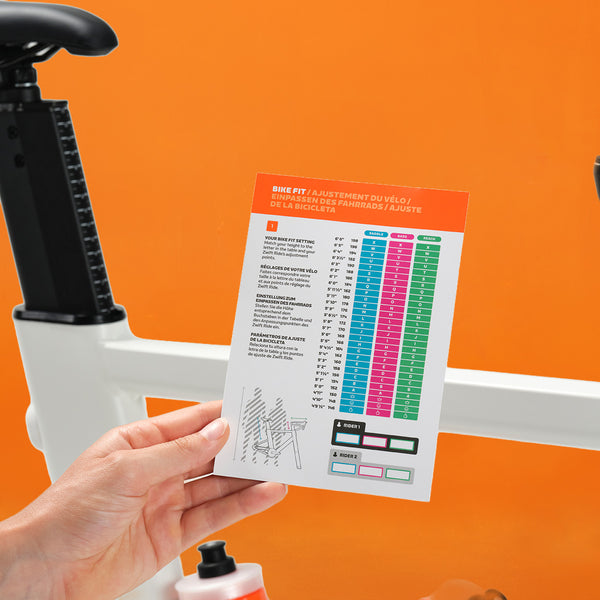

Easily Adjustable

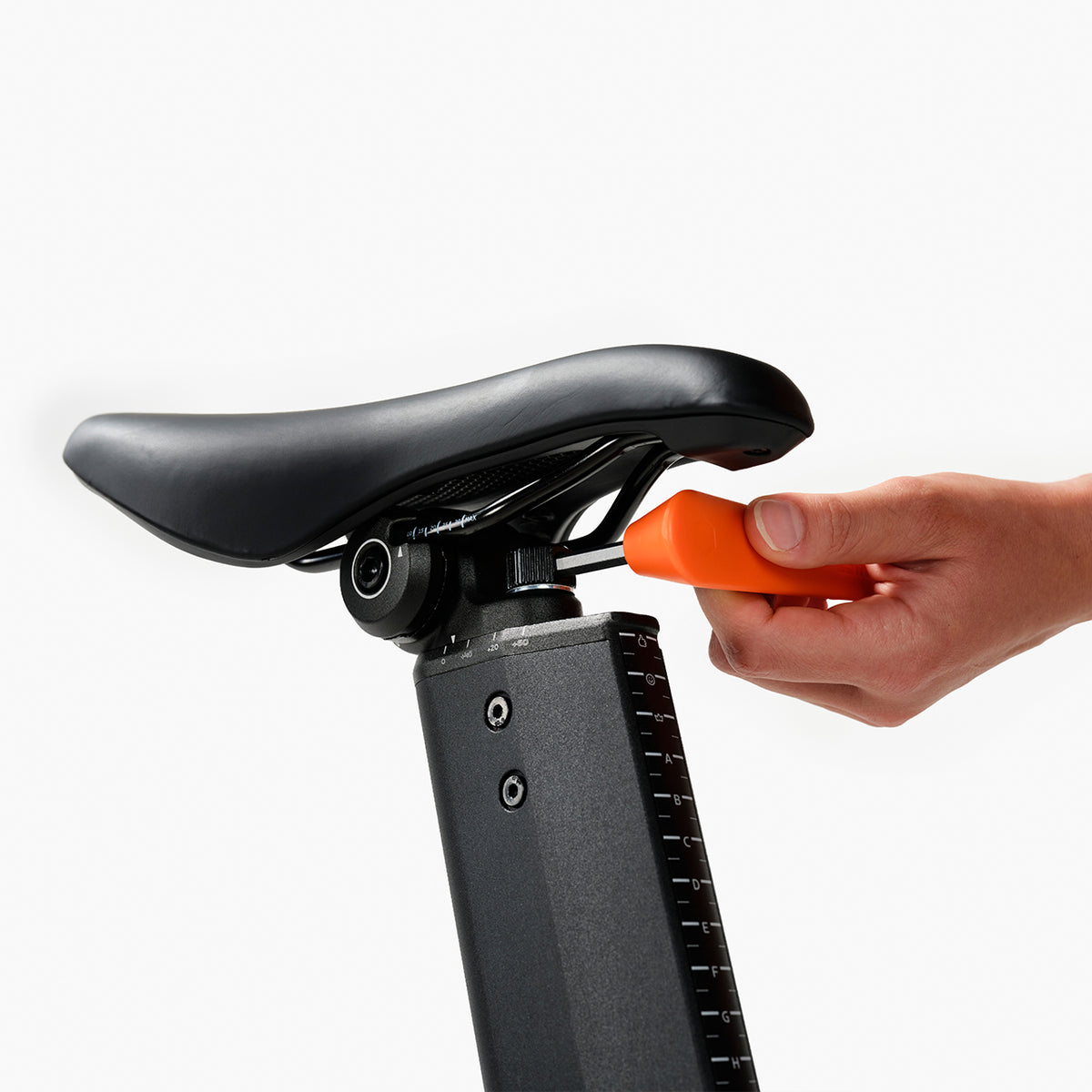

Zwift Ride Smart Frame is easily adjustable for riders between 5’ and 6’ 6”. All it takes to adjust the bike and share the fun is the Frame Key stored in the bike frame.

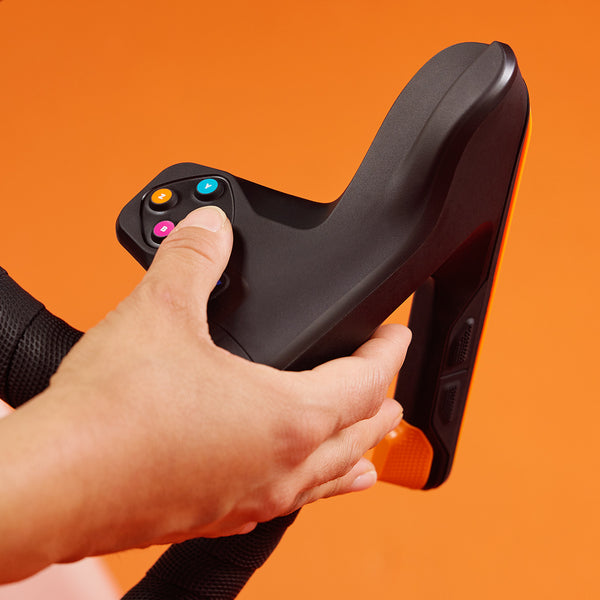

Effortless Control

Control Zwift easily from your handlebars. Queue workouts, use PowerUps, and send RideOns—all without pausing your ride.

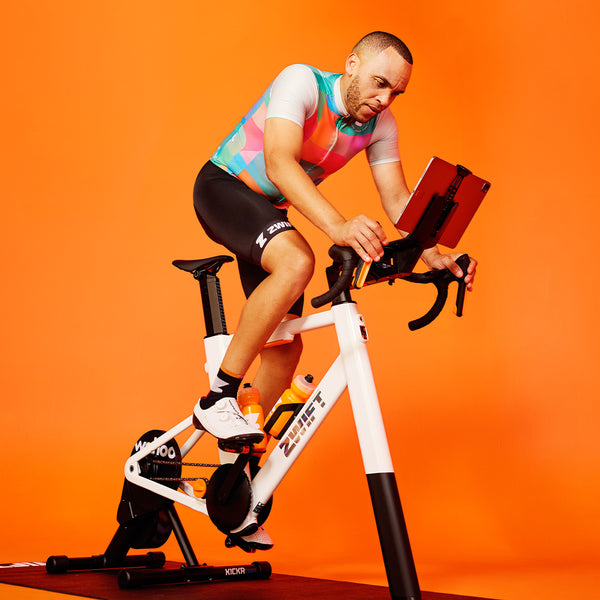

Always Ready

Designed for the home, Zwift Ride Smart Frame is ready to ride whenever you are.

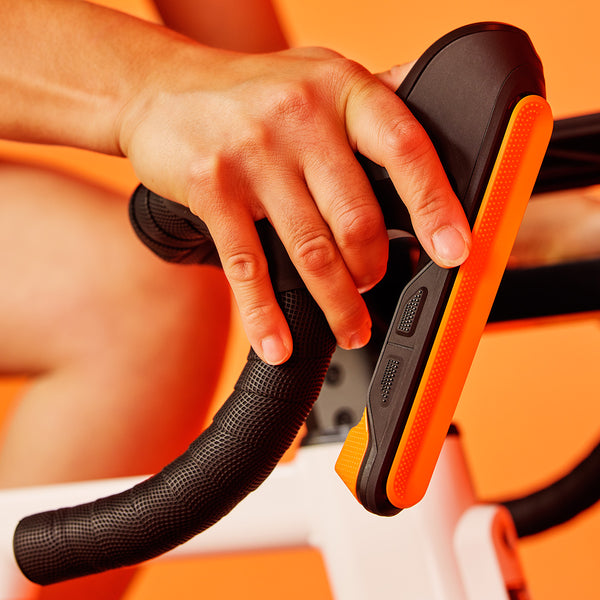

Smooth Shifting

Experience flawless, silent gear shifting with a customizable setup, ensuring you're always in the right gear for any route.

Tech Specs

Zwift Ride Smart Frame
Rider Fit Specs
Rider Fit Range:	5’ - 6’6”
Saddle Height Min-Max:	59.9 - 86.5 cm (center bottom bracket to top of saddle)
Stepover Height:	30.1 in
Max Rider Weight:	265 lbs.
Crank Length:	170 mm

Product Dimensions and Frame Specs
Product Dimensions:	43.3 in L x 17 in W
Product Weight:	56 lbs.
Drivetrain:	Chain (KMC Z1 narrow 3/32" width)
Pedals:	Flat Included (compatible with standard road and mountain pedals)
Saddle:	160mm W x 245mm L

Additional Handlebar Specs
Handlebar Height Min-Max:	34 - 40.4 in
Handlebar Width:	16.5 in / 42 cm (center to center)
Integrated rechargeable controllers:	20 hrs. per charge
Handlebar Controller Power:	Built-in rechargeable lithium-ion battery (1050 mAh)
Handlebar Controller Power requirements:	USB-A, 5v, 1A

Compatibility
Compatible with Zwift Cog v1 & Zwift Cog v2. Updated Zwift Cog v2 with no freehub included with purchase.

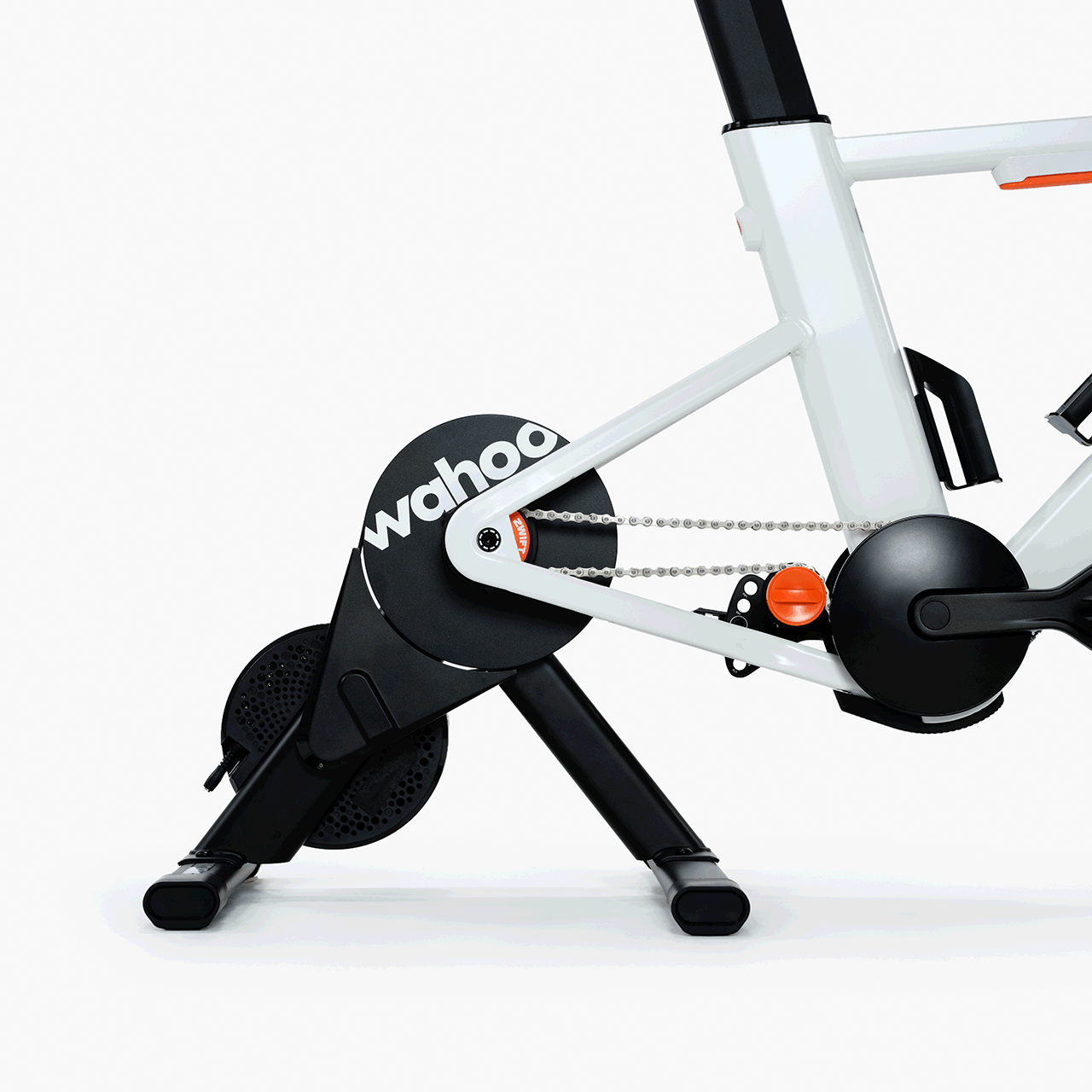

Compatible with a Zwift Ready smart trainer. Check to see if your smart trainer is compatible.
Update to latest firmware using manufacturer’s app.
Front Leg Riser Foot included for trainer height alignment
The Zwift Ride Smart Frame is not compatible with Tacx trainers, Elite trainers without the Zwift Cog preinstalled, and Wahoo KICKR v5 or earlier models due to hardware and firmware limitations.

Connectivity
Not compatible with ANT+ dongles
In-game shifting, steering, and UI control via handlebars are wirelessly transmitted via Bluetooth
Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections

More Details

Product & Shipping Details
This product ships in two separate boxes, so arrival times may vary.
Includes a 1-year limited warranty.
Modifying the product may void your warranty.
Do not store vertically.

Zwift Ride Handlebars
Box Dimensions:	21 in L x 8.3 in W x 9.1 in H
Boxed Weight:	8.2 lbs.

Zwift Ride Smart Frame
Box Dimensions:	48 in L x 9.3 in W x 31.3 in H
Boxed Weight:	48.5 lbs.

Shipping & Returns
Shipping
Orders will be processed within 1-3 business days
Transit time is 2–5 business days
$55 shipping charge applied at checkout
Additional shipping charge applied for Alaska & Hawaii

Returns
We offer a 30-day return policy on all products
Items should be in “like new” condition and returned in original packaging
Return delivery fees may apply, please check here for more details.

In The Box

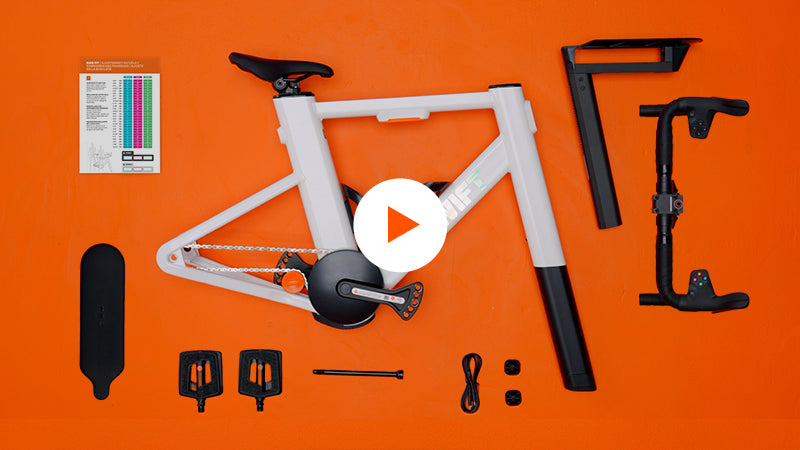

Zwift Ride Smart Frame Setup

This video covers the key steps to get your Zwift Ride Smart Frame set up. For more in-depth assembly and setup instructions visit our Zwift Ride setup page.

GO TO SETUP PAGE

Zwift Ride Smart Frame

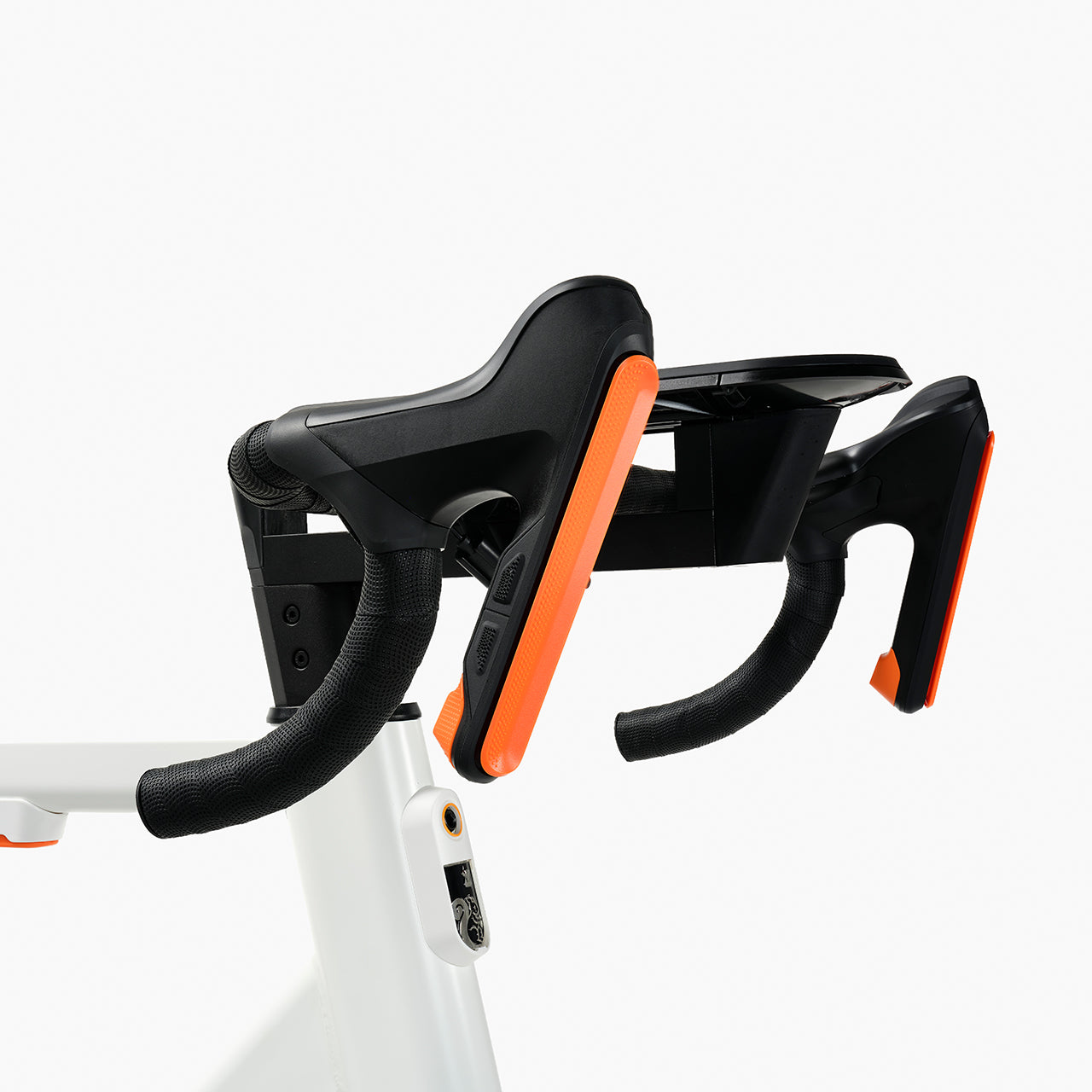

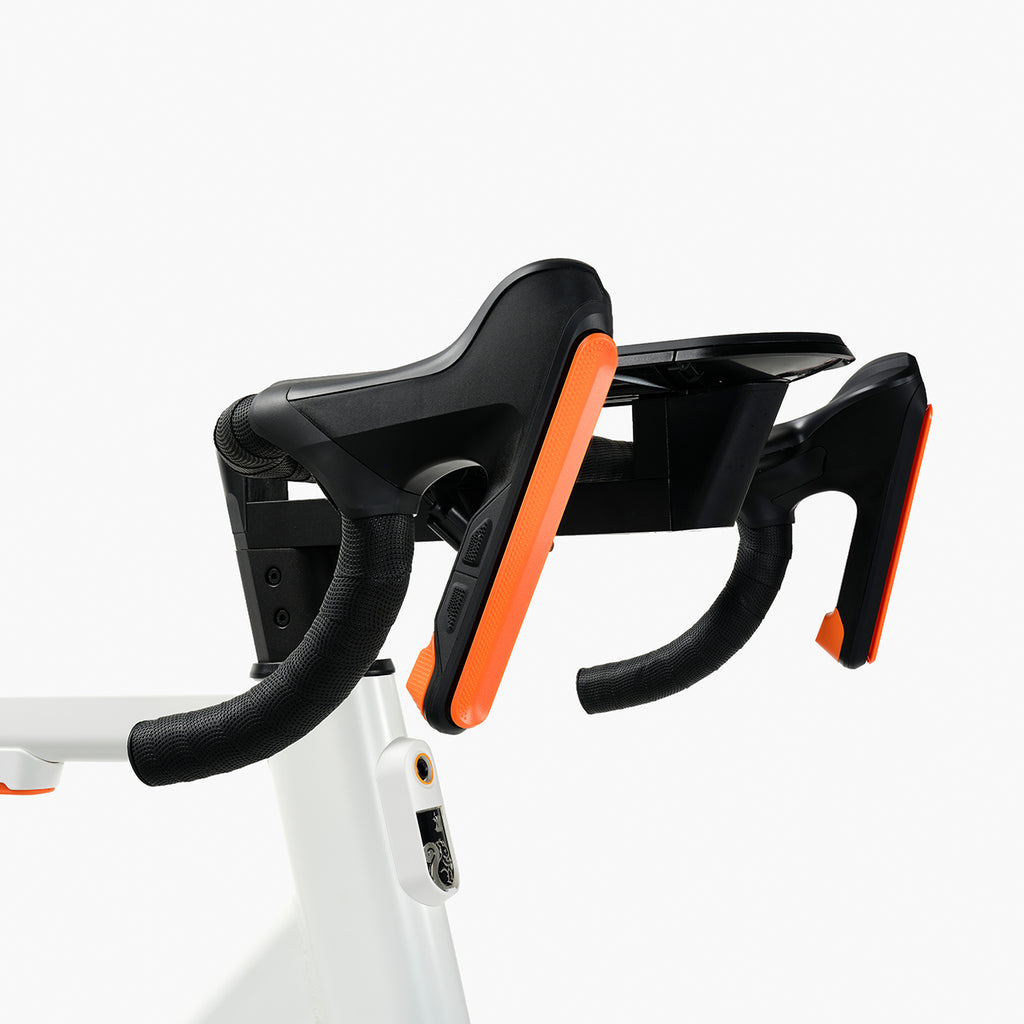

Handlebar with Controllers

Frame Key

Left & Right Pedals

Thru Axle

Riser Foot

4.9

Rated 4.9 out of 5 stars

Based on 30 reviews

Total 5 star reviews: 26 Total 4 star reviews: 4 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0

Slide 1 selected

Write a Review (Opens in a new window)

30 reviews

Sort

TZ
Tom Z.
Verified Buyer
Reviewing
Zwift Ride Smart Frame
I recommend this product
Rated 5 out of 5 stars
Solid upgrade
After becoming accustomed to di2 shifting, I was finding that I was having a harder time maintaining a steady cadence with the older Trek Madone that I was using as my indoor bike. The Zwift Ride, with its controls and electronic shifting has improved my indoor experience. Very happy with the Ride so far.
Was this helpful?
RL
Renato L.
Verified Buyer
Reviewing
Zwift Ride Smart Frame
I recommend this product
Rated 5 out of 5 stars
Why I cannot give 10 stars?
It is perfect (almost) I just needed to change the handlebars (personal reference, look at the pictures) other than that I recommend it. My wife loved that too, and the best part is we share the same height and everything I do not need to change anything when she is using that but if it is needed, it is very easy with the tool.
Was this helpful?
5W
5 Wayne Yang (.
Verified Buyer
Reviewing
Zwift Ride Smart Frame
I recommend this product
Rated 4 out of 5 stars
Sturdy, easy to setup
Really happy with the ride. It was super easy to set up and get riding. The cog is much quieter than your traditional cassette. The handlebars are not great for smaller hands -- the Zwift play controllers are more ergonomic, but very happy overall
Was this helpful?
LK
Lisa K.
Verified Reviewer
Reviewing
Zwift Ride Smart Frame
I recommend this product
Rated 4 out of 5 stars
Excellent product, great ride, needs shorter cranks
I took my first ride on the Zwift Ride tonight and was really impressed by how adjustable the fit is! The biggest fault is the stock 170mm cranks, which are rapidly going out of style in favor of shorter cranks that maximize mechanical advantage for the vast majority of riders. Having such a great product that's adjustable in every other way BUT cranks is a real shame. Having crank length as a choice upon order or having cranks with multiple pedal holes would make this bike a 5-star experience.
Was this helpful?
AP
Alan P.
Verified Buyer
Reviewing
Zwift Ride Smart Frame
I recommend this product
Rated 4 out of 5 stars
Stable platform, some nice features but still a little work to do with the buttons and this will not accommodate oval seat rails
Bought the bike after a few rides on the Zwift kicker core. Honestly just couldn’t be bothered taking my bike on and off the trainer and didn’t want the use on my drivetrain. Bike came quickly and I get it set up in 20-30 mins max. Added some rockbros shimano style pedals from Amazon and was off. I didint bother with the tutorial- just played around with the shifting. Later watched a video on YouTube. Overall the ride is much more stable than mounting a bike to the kickr core. I like the steering feature, the shifting ease and the y button for using the in game boosts but a lot more can be done. It’s still clumsy to navigate around the menus and I wish I could assign the buttons to do what I want. For example I would just use the upper and lower shift buttons on the right lever to go up and down the ‘gears’ and would lay out the buttons in a way I find more intuitive for menu navigation and in game play. Lastly I tried to mount a modern saddle(carbon 3d) with oval rails and the seat mount will not accommodate this. I can’t remember the last time I have seen rounded seat rails so I’m stuck with this saddle for now.
Was this helpful?
